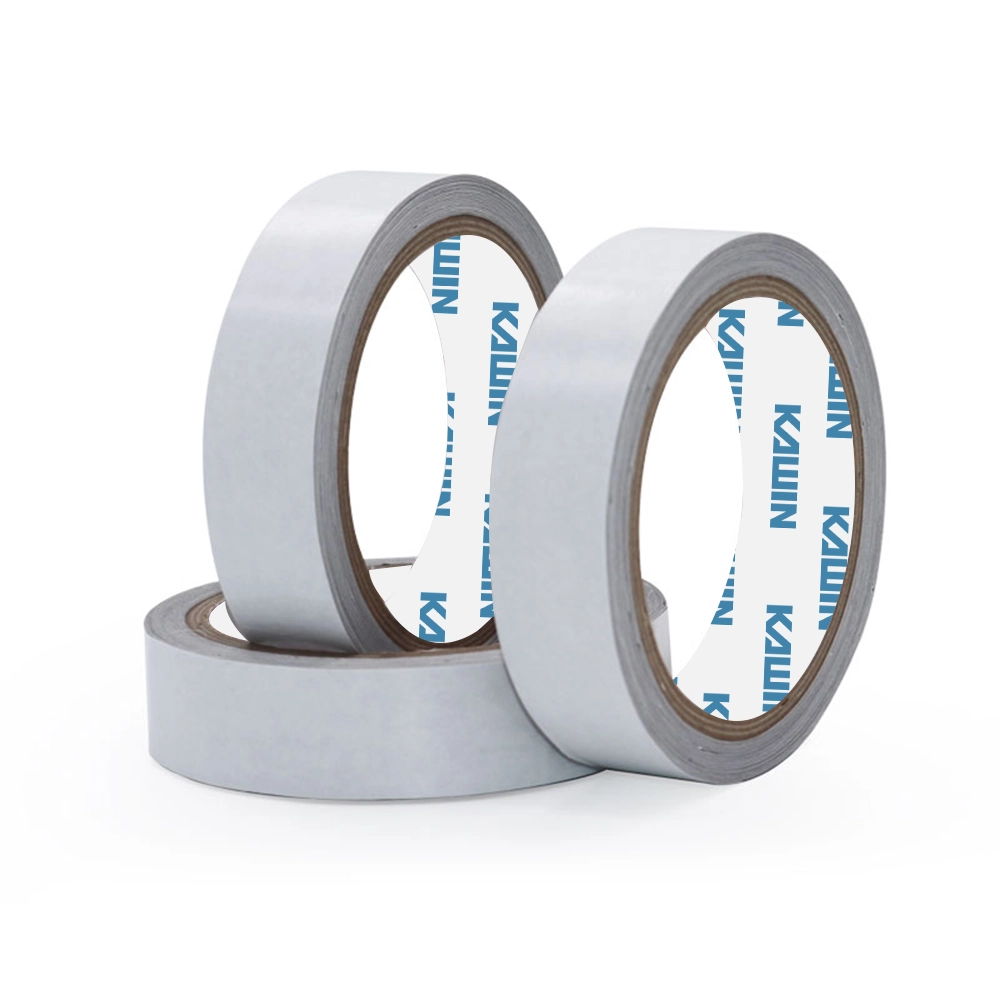

Our Conductive Fabric Double Sided Tape is an advanced adhesive designed for demanding industrial applications. It masterfully combines the flexibility of conductive fabric with the robust performance of a conductive adhesive, creating a reliable solution for both electromagnetic shielding (EMI) and secure bonding.
1. Superior EMI Shielding and Grounding
At its core, this tape is engineered with an advanced electroplating process. A Polyester fabric is first coated with a highly conductive copper layer, which is then covered with an anti-oxidation, anti-corrosion nickel metal. This precise combination of copper and nickel provides excellent conductivity, superior shielding effectiveness, and great abrasion resistance, ensuring the stable operation of your electronic devices.
2. Exceptional Dual-Directional Conductivity
The adhesive in our tape is evenly distributed with conductive particles, allowing it to conduct electricity not only horizontally (X-Y axis) but also vertically (Z-axis). This Z-axis conductivity ensures a seamless electrical path, even on irregular or complex surfaces.
3. High Adhesion and Flexibility

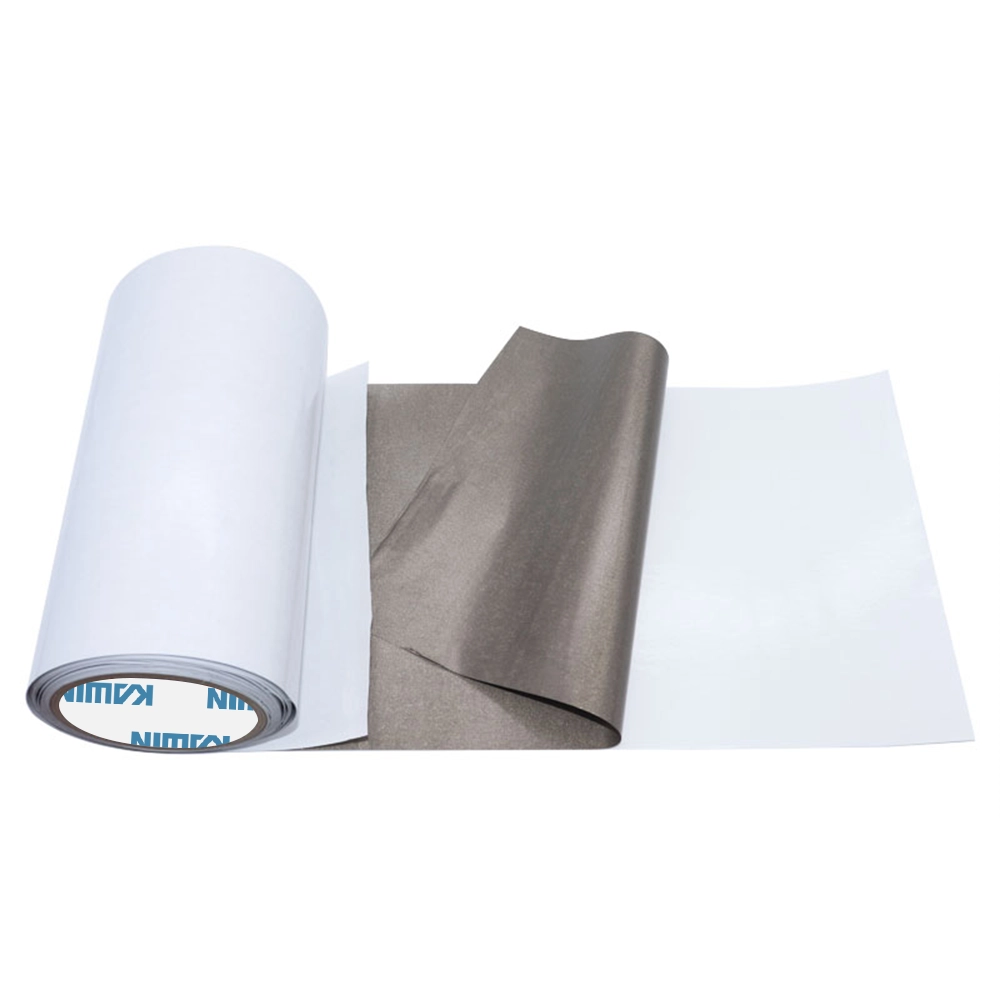

Engineered for strong, long-lasting bonds, our conductive tape adheres securely to a wide range of materials. The soft, pliable fabric backing can be easily bent, wrapped, and molded to conform to intricate shapes, simplifying assembly. It cuts cleanly without fraying and is resistant to fingerprints and oxidation.
Product Specifications
| Product Code Technical Parameters | KN0405D | KN0408D | KN0410D | KN0412D | KN0415D | KN0420D |
| Color | White | |||||
| Total Thickness[mm] | 0.05 | 0.08 | 0.1 | 0.12 | 0.15 | 0.2 |
| Backing Thickness[mm] | 0.03 | 0.03 | 0.08 | 0.08 | 0.08 | 0.08 |
| Backing | Conductive Cloth | |||||
| Adhesive | Conductive Acrylic | |||||
| 180°Peel Strength[N/inch] | 12/12 | 12/12 | 12/12 | 15/15 | 15/15 | 15/15 |
| Initial Adhesion[#] | 2 | 2 | 2 | 2 | 2 | 2 |
| Retentivity[hour] | 48 | |||||
| Surface Resistance[mΩ] | 50 | |||||
| Long-Term Temperature Resistance[℃] | 80 | |||||
| Short-Term Temperature Resistance[℃] | 120 | |||||
Key Applications
- Electronics: Used inside mobile phones, laptops, and tablets for EMI shielding, grounding, and component assembly.
- Telecommunications: Sealing enclosures and connectors to prevent electromagnetic signal interference.
- Medical Devices: Providing critical shielding and grounding in sensitive medical equipment that requires high electromagnetic compatibility (EMC).
- Cable Management: Wrapping and securing cables while providing a conductive path for grounding.
Contact Us Today
We offer customizable options to meet the specific requirements of your project, including different thicknesses, widths, and die-cut shapes. Contact our expert team today to discuss your needs or to request a sample of our high-performance conductive fabric double sided tape.
