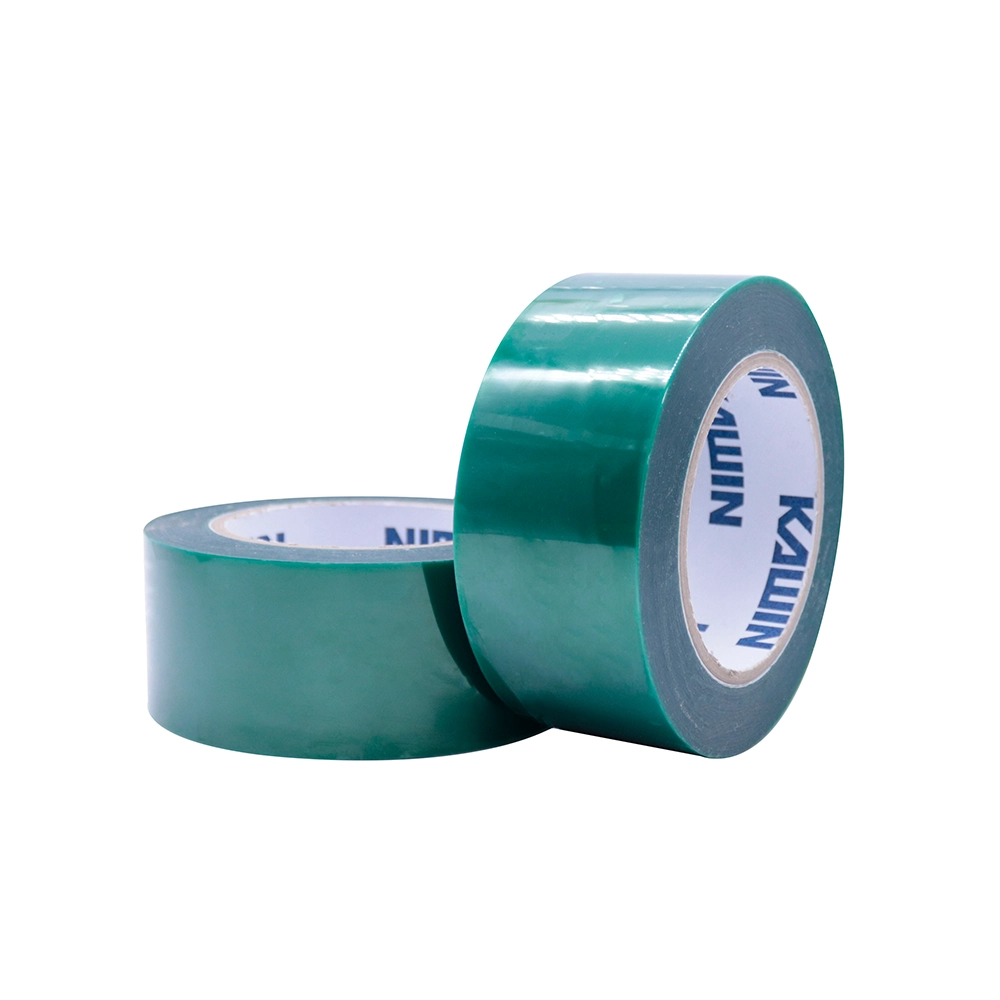

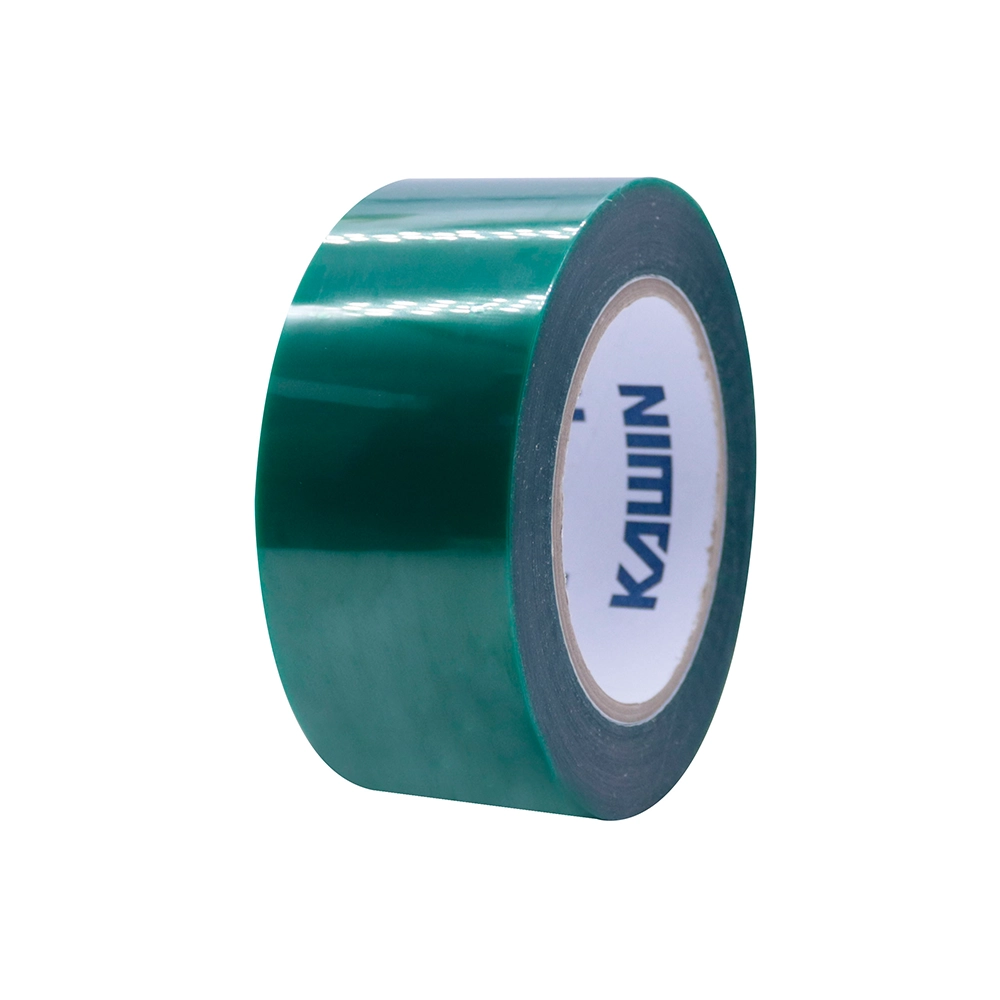

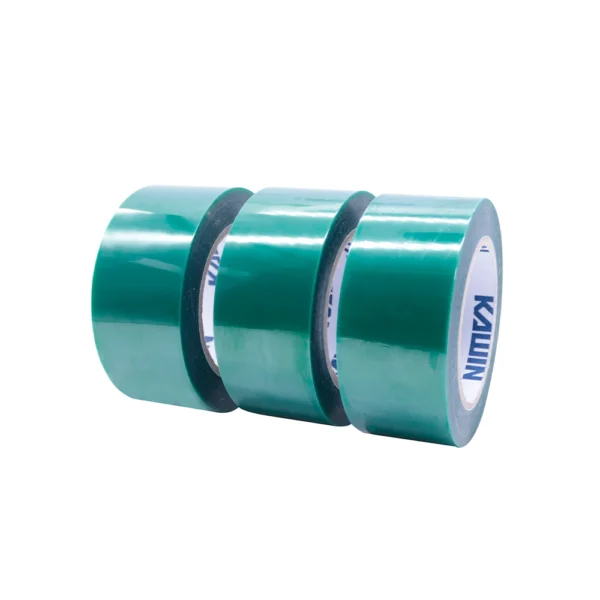

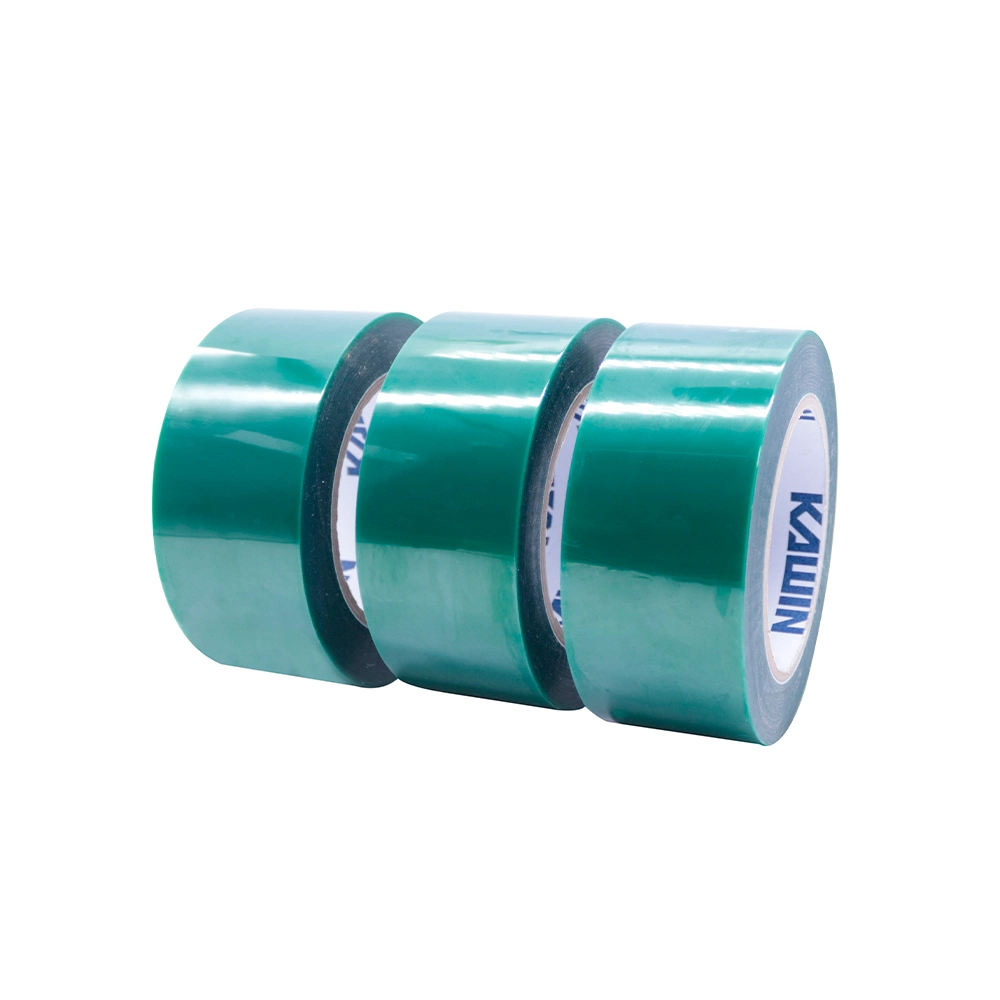

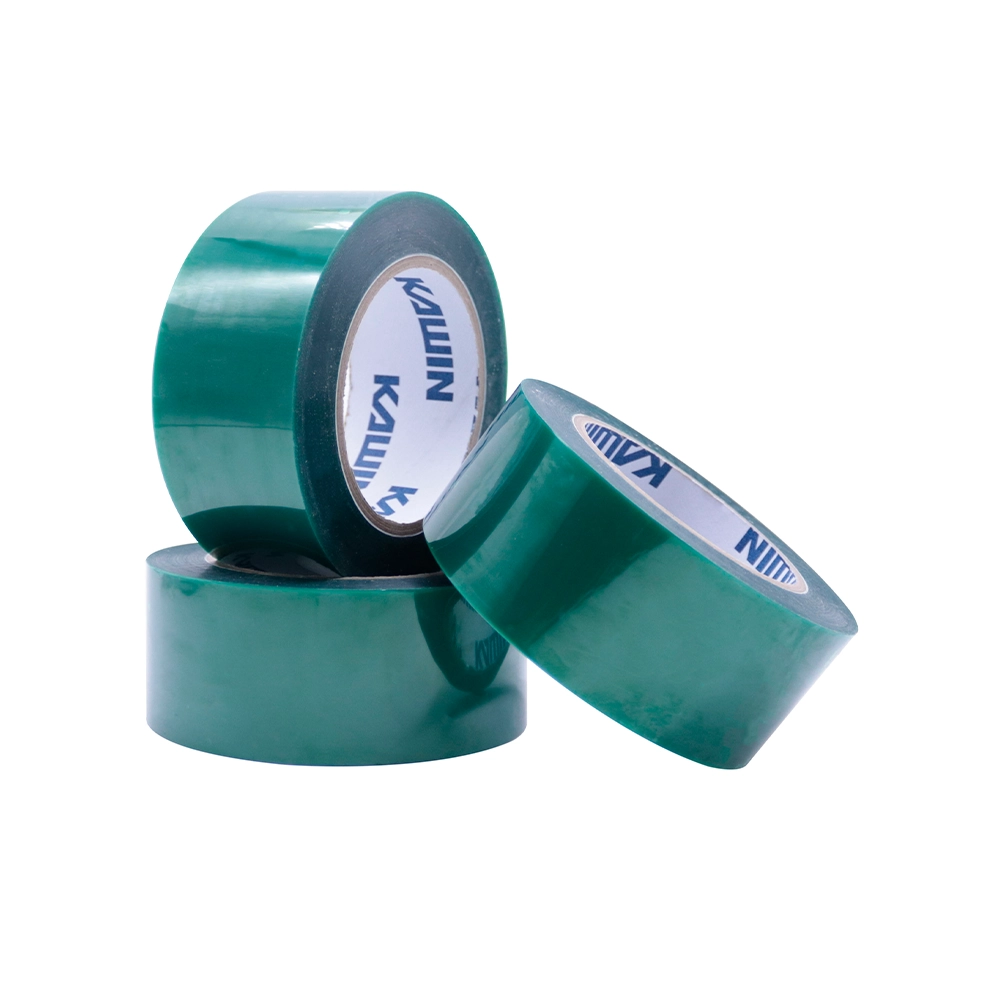

PET High Temperature Tape is a polyester film-based adhesive tape designed for applications requiring excellent heat resistance, electrical insulation, and durability. With its strong adhesive and high tensile strength, this tape maintains stability under extreme temperatures, making it ideal for industrial masking and protection.

Key Features:

Heat resistant up to 200°C
Strong adhesion with clean removal after use
Excellent electrical insulation properties
High tensile strength and wear resistance
Available in multiple widths, thicknesses, and colors (green, blue, transparent, etc.)

Applications:

Powder coating masking
PCB soldering and wave solder masking
Painting and electroplating protection
Electronic components insulation
Industrial high-temperature packaging

Specifications:

Product Code Technical Parameters	KN0306	KN0306A	KN0306B	KN0307	KN0308	KN0309	KN03095	KN0312	KN0315	KN0306E	KN0310GDS
Color	Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue (Customizable)
Total Thickness[mm]	0.06	0.055	0.06	0.07	0.08	0.09	0.095	0.12	0.15	0.06	0.1
Backing Thickness[mm]	0.025	0.038	0.038	0.025	0.05	0.05	0.025	0.075	0.1	0.025	0.025
Backing	PET
Adhesive	Silicone
180°Peel Strength[N/inch]	8	8	8	8	7.5	10	8	11	10	6	A≥10 B≥11
Tensile Strength[N/inch]	135	150	150	150	150	150	150	175	200	135	135
Elongation At Break[%]	70	70	70	70	70	70	70	70	70	70	70
Long-Term Temperature Resistance[℃]	180	180	180	180	180	180	180	180	180	180	180
Short-Term Temperature Resistance[℃]	200	200	200	200	200	200	200	200	200	200	200
