Product Structure
Top Layer: PVC nano composite film
Middle Layer: Reinforced mesh fabric
Bottom Layer: High-tack double-sided adhesive (white glue)
Edge Design: Chamfered slope edges for enhanced wear resistance and smoother transition
This multi-layer structure provides a perfect balance between hardness, flexibility, load-bearing resistance, and stable adhesion.
Main Use
KN21180NB is designed for facilities that require high-visibility, long-lasting floor marking solutions, including:
✔ Industrial & Factory Workshops
Production line marking
Safety zoning
Equipment operation areas
✔ Warehouses & Logistics Centers
Pathway indication
Area separation
Rack & pallet identification
✔ Commercial and Public Environments
Traffic lanes and directional markings
Safety warning lines
Marble, tile, epoxy, and hardened cement floors
Note: The surface must be dry, clean, and smooth before application for optimal bonding.
Product Features
1. Nano-Composite Technology
The PVC nano composite base provides improved impact resistance, compression strength, elasticity, and longevity—outperforming conventional PVC tapes.
2. Slope-Edge Anti-Wear Design
The beveled edge reduces catching, peeling, and wear caused by forklift wheels or heavy traffic, significantly extending product lifespan.
3. Strong, Clean-Removal Adhesive
High-strength double-sided white glue ensures immediate sticking, stable adhesion, and residue-free removal.
4. High Hardness + High Flexibility
Engineered to bend smoothly around corners and form clean arcs without cracking.
5. Stain-Resistant, Waterproof, Easy to Clean
Smooth surface resists dirt absorption and withstands water, humidity, and chemical exposure.
6. Eco-Friendly & Odor-Free
No volatile odors and compliant with green manufacturing standards.
Typical Performance
| Test Item | Typical Value | Unit | Test Method |
|---|---|---|---|

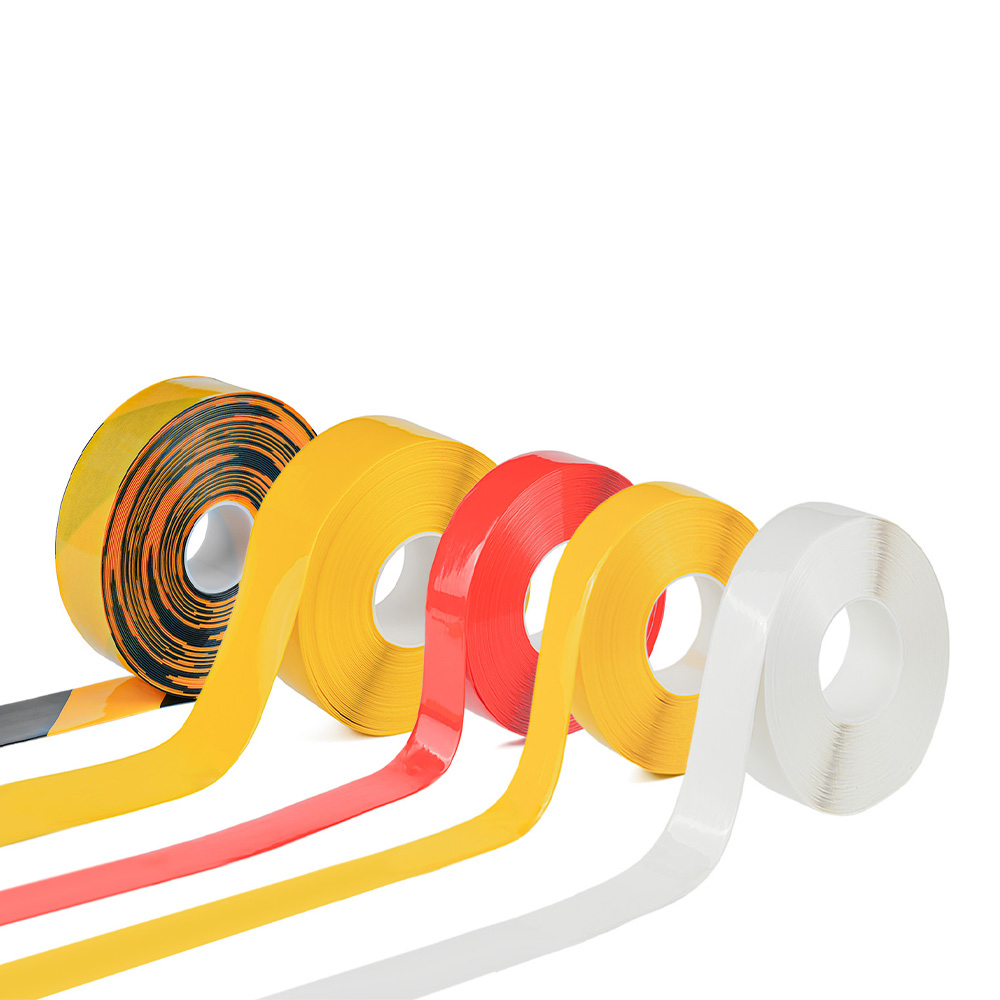

| Color | Yellow, green, red, white, blue, black-yellow, red-white (customizable) | – | Visual Inspection |
| Glue Type | White glue double-sided adhesive | – | – |
| Base Material | PVC nano composite | – | – |
| Base Thickness | 1.3 | mm | – |
| Glue Thickness | 0.5 | mm | – |
| Total Thickness | 1.8 | mm | ASTM D-3652 |
| Compressive Strength (12T Thick Version) | 623 (no visible damage) | kgf/cm² | – |
| Compressive Strength (17T Thick Version) | 727 (no visible damage) | kgf/cm² | – |
These test results demonstrate stability under high-load mechanical pressure and long-term industrial use.
Product Specifications
Standard Sizes: 50mm / 80mm / 100mm / 120mm / 150mm × 30m
Customization:
Special widths
Custom lengths
Custom shapes (arrows, dots, L-shapes, hazard strips)
Custom colors and printing
Suitable for OEM/ODM industrial marking projects.
Storage & Shelf Life
Store in a clean, dry environment, away from direct sunlight.
Keep away from volatile solvents to prevent adhesive degradation.
Recommended storage temperature: 25°C ± 10°C
Humidity: 30–60%
Best used within 12 months from production.
Why Choose KN21180NB for Industrial Floor Marking
✔ Stronger Than Standard PVC Tape
The nano composite construction provides up to 2–3× longer service life.
✔ Withstands Forklifts & Heavy Machinery
Tested to maintain performance even under repeated compression from 12T–17T equipment.
✔ Manufacturer With 28 Years of Tape Expertise
We offer stable mass production, consistent quality, and full customization.
✔ Ideal for High-End B2B Procurement
Designed for factories, logistics centers, equipment manufacturers, facility contractors, and safety management projects.
Request a Quote
If you need bulk procurement, custom specifications, or OEM floor marking solutions, our engineering team can support your project with tailored recommendations and fast production timelines.
