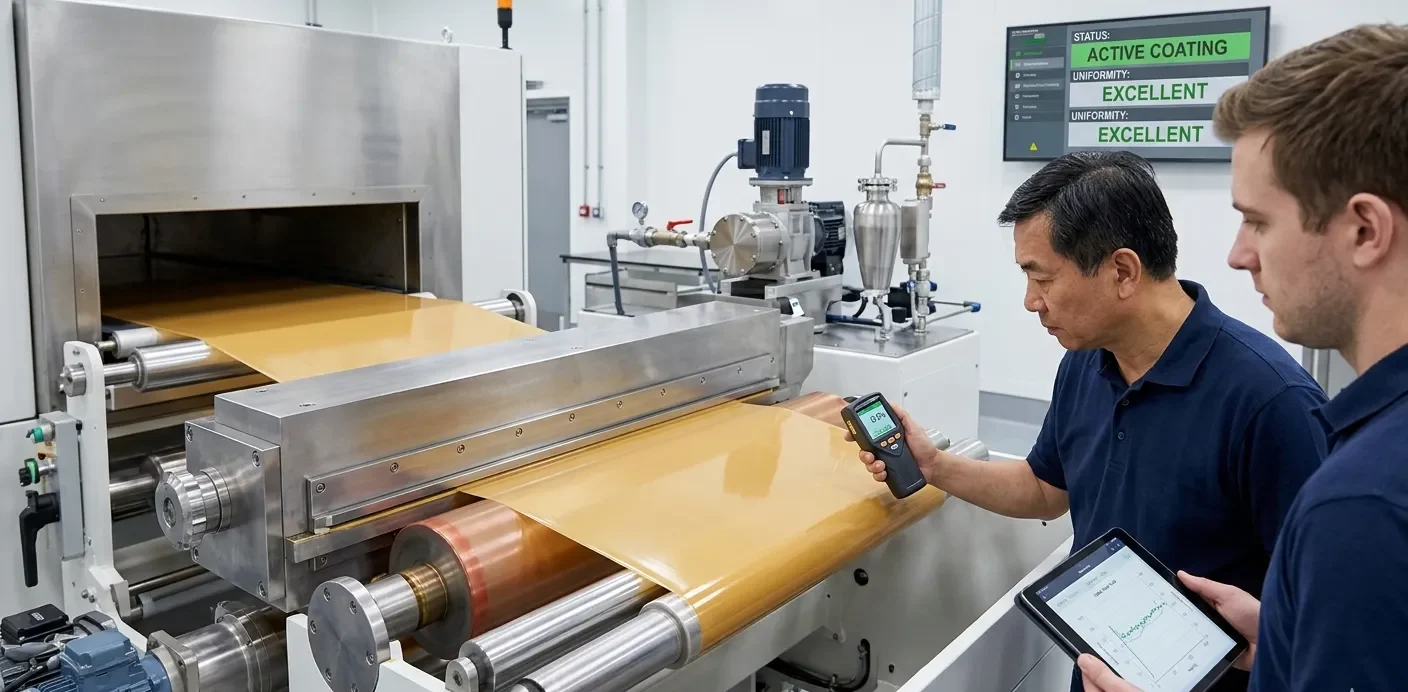

In precision manufacturing, transitioning from Comma (Roll) Coating to Slot Die Pressure Coating is often seen as a simple hardware upgrade. However, many engineers find that after installing a premium die, the production line immediately suffers from pinholes, chatter lines, and uneven thickness.
Why does a formula that ran perfectly on a Comma line suddenly fail on a Slot Die? After auditing hundreds of failed migrations, we found that the issue isn’t the equipment—it’s the fundamental shift in process logic. Here are the 6 critical “blind spots” you must address.
1. Slurry Thixotropy: The “Static Viscosity” Trap
The Symptom: Your viscometer reads 1,800 mPa·s—identical to your previous process—but once the Slot Die pump starts, the slurry either refuses to coat or floods the lip.
The Technical Reality: Comma coating is a passive transfer process. Slot Die is active extrusion. Inside the die, the slurry experiences high shear; the moment it exits, that shear vanishes.
If it recovers too fast: The fluid won’t level, causing “streaks.”
If it recovers too slow: You get sagging or “fat edges.”
Expert Tip: Don’t rely on static viscosity. Analyze the Shear Rate vs. Viscosity curve (Thixotropic Index). If the TI is too high, implement low-speed pre-dispersion before feeding.
2. Pump Pulsation: The Death of MD Uniformity
The Symptom: Periodic thickness ripples where the frequency matches the pump’s RPM.
The Diagnosis: Comma coating reservoirs act as a buffer. In Slot Die, the pump is a metering device. Every micro-pulsation is “printed” 1:1 onto the substrate.
The Fix:
Calculate the ripple wavelength. If it matches the RPM, replace standard gear pumps with Triple-Screw Pumps or Precision Metering Pumps.
Always integrate a Pulsation Dampener to stabilize the flow field.
3. The 1μm Rule: Die-to-Back-Roll Parallelism
A Comma blade has slight physical flexibility. A Slot Die lip is rigid.
Standard Operating Procedure (SOP):
Back-Roll Validation: If run-out exceeds 0.005mm, regrind the roll.
Gap Calibration: Set the initial gap with a deviation of < 0.01mm.
Data-Driven Tuning: Use Online Thickness Gauges to achieve a CPk > 1.33.
4. Drying Nozzles: Avoiding the “Orange Peel” Effect
The Problem: Slot Die allows for much thinner coatings (10–50μm), which are hyper-sensitive to air velocity.
The Solution:
Vertical Impingement: Nozzles must be exactly perpendicular. Angled air creates horizontal force, causing the Marangoni Effect (surface waves).
Zonal Gradient: In Zone 1, use minimal air velocity. Focus on vapor removal without disturbing the wet film surface.
5. Web Tension: Losing the “Nip” Advantage
In Comma coating, the “nip” between the blade and roll stabilizes the web. Slot Die is a non-contact process.
The Symptom: Web flutter at the coating head leading to irregular edges. The Fix: Redefine your tension profile. Without the mechanical “anchor” of the blade, Slot Die requires higher precision in Electronic Positioning Controllers (EPC).
6. Closed-System Cleaning: The “Black Box” Challenge
A Slot Die manifold is a complex internal “coat hanger” flow field. Once slurry dries inside, it distorts the pressure distribution.
The “Gold Standard” Routine:
Solvent Displacement: Flush until the discharge is clear.
Ultrasonic Bath: Disassemble the die for deep cleaning.
Borescope Inspection: Verify the manifold and lip gap are free of micro-debris. Even a 5μm particle can cause a continuous streak.
Conclusion
Moving to Slot Die is a shift from “Empirical Adjustment” to “Precision Engineering.” Are you still applying “Comma-era” habits to your high-tech line?
