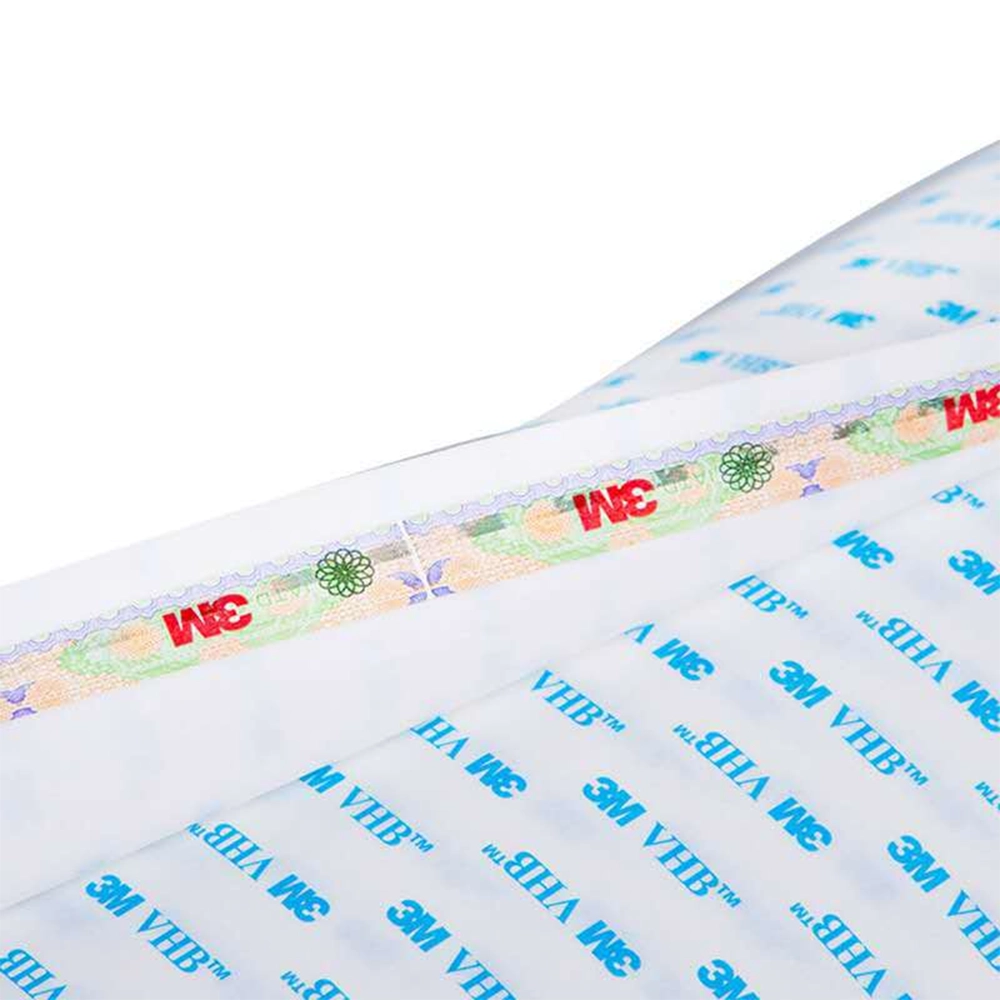

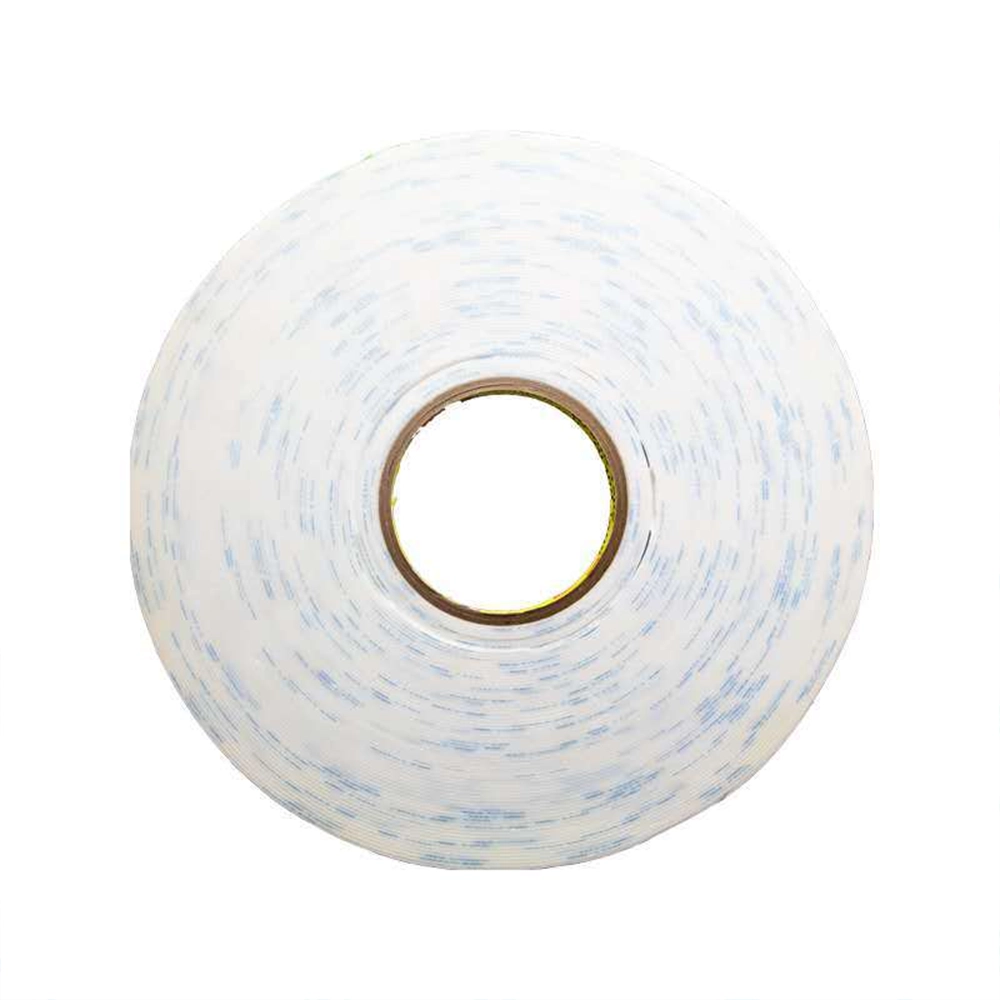

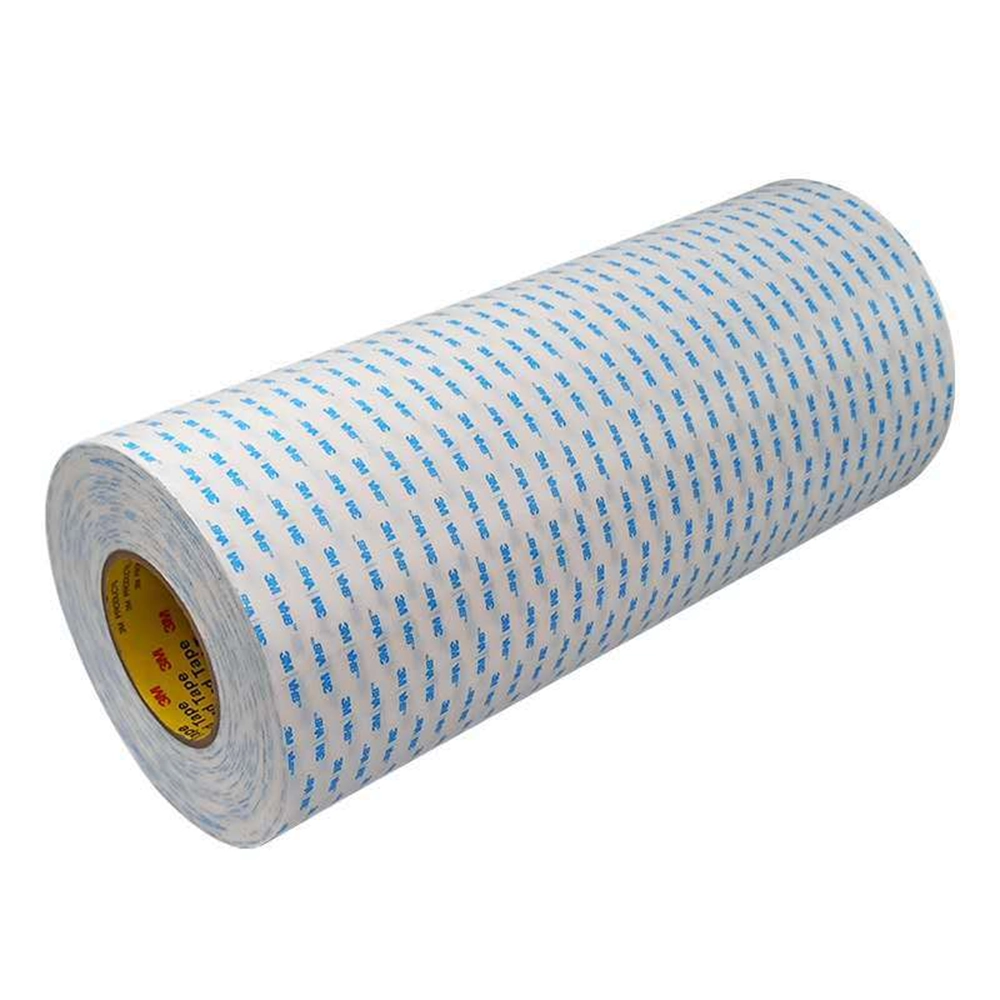

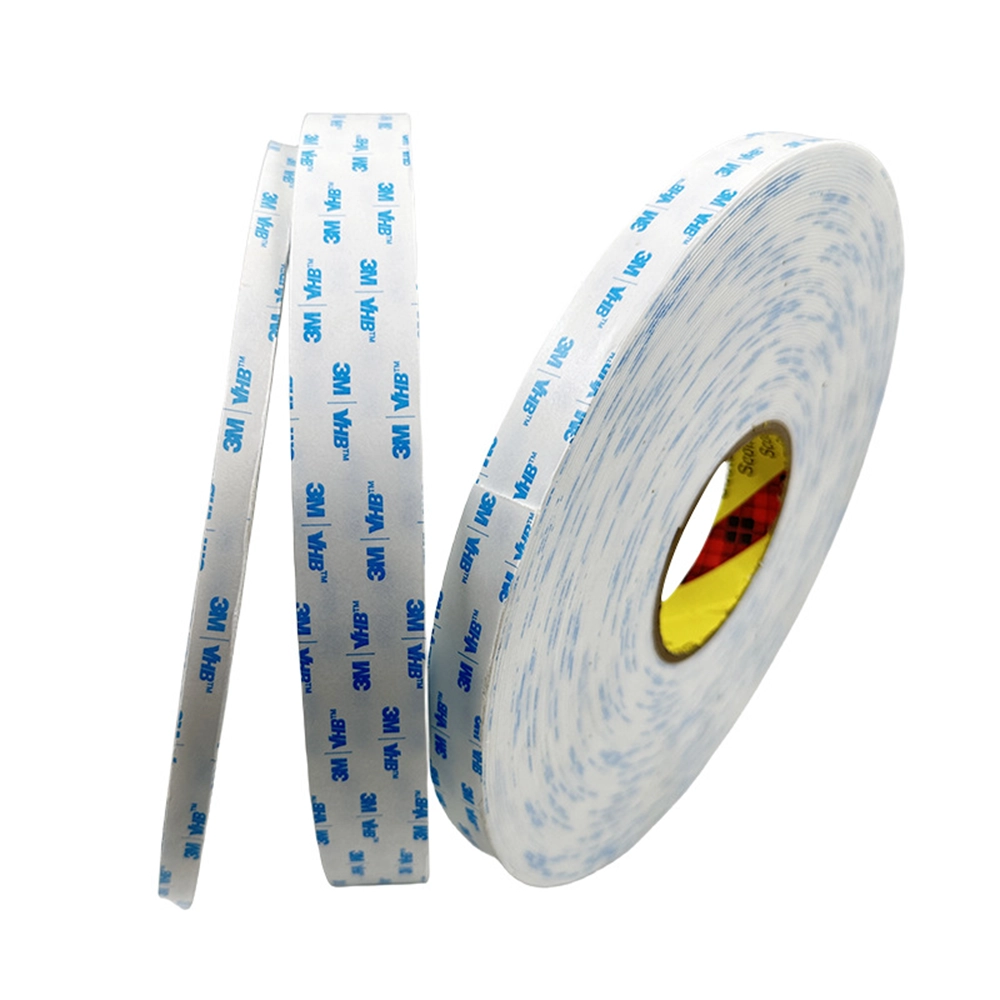

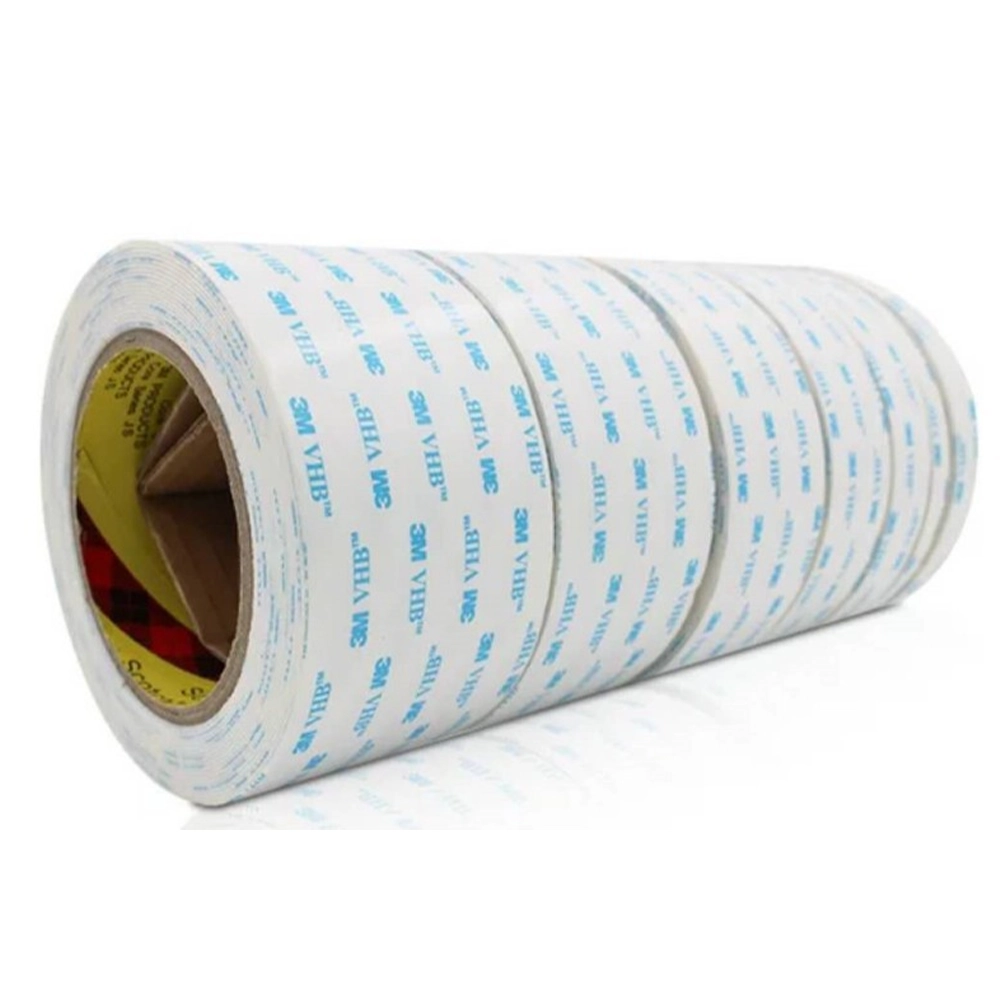

3M 5611N-WP Acrylic Foam Tape

3M 5611N-WP is an automotive acrylic foam attachment tape developed for permanent bonding of exterior vehicle components that operate under continuous exposure to sunlight, rain, temperature fluctuations, and road vibration.

Its 1.1 mm viscoelastic acrylic foam core provides excellent tolerance compensation, vibration damping, and environmental durability, while the black foam construction helps create a less visible bond line behind dark-colored trim and appearance components.

Key Functions

• Weather-resistant exterior attachment
• Automotive trim installation
• Body molding bonding
• Black appearance component mounting
• Vibration damping
• Mechanical fastener replacement

Typical Applications

• Body side moldings
• Window trim
• B-pillar appliques
• Black exterior garnish
• Roof moldings
• Decorative exterior panels

Typical Substrates

• Painted steel
• Aluminum
• ABS
• PC/ABS
• ASA
• Polycarbonate
• Composite materials

Quick Facts

• Product Series: Automotive Acrylic Foam Tape
• Product Code: 5611N-WP
• Thickness: 1.1 mm
• Color: Black
• Foam Type: Acrylic Foam
• Primary Industry: Automotive OEM
• Core Advantage: Weather-resistant attachment with concealed bond line
• Typical Environment: Long-term outdoor vehicle exposure

Why Choose 3M 5611N-WP

Exterior automotive trim is continuously exposed to harsh environmental conditions that can weaken conventional attachment systems over time.

3M 5611N-WP combines a thick acrylic foam core with long-term weather resistance to maintain secure attachment despite UV exposure, heavy rain, road vibration, humidity, and repeated thermal expansion.

Its black foam construction is particularly suitable for dark-colored trim where minimizing bond line visibility contributes to a premium vehicle appearance.

Engineering Principle

The viscoelastic acrylic foam core distributes loads evenly across the bonding interface instead of concentrating forces at individual clips or screws.

This design provides:

• Improved stress distribution
• Superior vibration absorption
• Compensation for thermal expansion
• Better conformity to slightly uneven surfaces
• Long-term durability in outdoor environments

The result is a more reliable attachment system throughout the vehicle service life.

Applications

Exterior Trim Systems

• Window moldings
• Roof moldings
• Door trim
• Decorative side moldings

Appearance Components

• B-pillar appliques
• Black garnish panels
• Exterior styling accents
• Decorative overlays

Automotive Assembly

• Plastic-to-metal bonding
• Exterior appearance modules
• Composite trim installation

Commercial Vehicles

• Exterior accessories
• Protective trim
• Decorative body panels

Problems Solved

• Visible clips and screws
• Bond line exposure behind dark trim
• Water ingress through drilled holes
• Vibration-related trim movement
• Thermal expansion mismatch
• Weather-related adhesive degradation

Selection Guide

Choose 3M 5611N-WP if:

• Exterior trim is exposed to severe weather conditions
• Black bond lines improve appearance
• Greater foam thickness is required
• Long-term durability is critical
• OEM-quality exterior finishes are expected

Consider another automotive acrylic foam tape if:

• Gray foam is preferred for matching substrates
• Ultra-thin bond lines are required
• Specialty plastic bonding is the primary objective

Technical Specifications

Weather-Resistant Bonding Advantage

Compared with conventional mechanical attachment methods, 3M 5611N-WP offers:

• Long-term resistance to outdoor exposure
• Improved durability under temperature cycling
• Continuous stress distribution
• Cleaner exterior appearance
• Elimination of corrosion-prone fastener holes
• Better sealing against water intrusion

The black acrylic foam also helps reduce bond line visibility, making it well suited for premium vehicle exterior styling.

Comparison

Installation Guidelines

• Clean all substrates thoroughly
• Remove oil, wax, silicone, and contaminants
• Apply even pressure across the entire bonding area
• Ensure full adhesive wet-out
• Allow adequate dwell time before maximum service loading

Common Mistakes

• Applying to contaminated painted surfaces
• Using insufficient installation pressure
• Selecting the wrong foam color for appearance-critical applications
• Ignoring substrate compatibility testing
• Loading assemblies immediately after installation

FAQ

What is 3M 5611N-WP mainly used for?

It is primarily used for attaching automotive exterior trim, moldings, pillar appliques, decorative panels, and appearance components exposed to outdoor environments.

Why choose black acrylic foam tape?

The black foam creates a less noticeable bond line behind dark-colored trim and contributes to a cleaner, premium exterior appearance.

Can 3M 5611N-WP replace clips and screws?

Yes. It is designed as a permanent attachment solution for many automotive exterior applications while improving appearance and reducing corrosion risks.

Is 3M 5611N-WP suitable for long-term outdoor exposure?

Yes. It is engineered to resist UV radiation, rain, humidity, road vibration, temperature cycling, and other demanding automotive environmental conditions.

What materials can 3M 5611N-WP bond?

It is commonly used with painted steel, aluminum, ABS, PC/ABS, ASA, polycarbonate, composite materials, and other automotive exterior substrates.
