PET / Mylar Tape
Thin dielectric insulation, layer separation and coil wrapping with good dimensional stability.
CUSTOM INDUSTRIAL TAPE SOLUTION
Custom Electrical Insulation Tape Manufacturing
Build the solution around dielectric function, temperature class, abrasion, flame behavior and component geometry, rather than specifying only a tape name or nominal thickness.
Quick answer: KAWIN customizes PET/Mylar, polyimide, acetate cloth, Nomex, fiberglass and flame-retardant constructions. Material selection and converted presentation are aligned to the real component and production process.
CUSTOMIZABLE PRODUCT FORMS
What we can manufacture in this tape family
These options share one topic, but solve different engineering tasks. Select the closest form, then confirm the construction against your application.
Polyimide Insulation Tape
Higher-temperature dielectric protection for motors, batteries, transformers and electronics.
Acetate Cloth Tape
Conformable wrapping and harness insulation with a fabric-like hand.
Nomex Paper Tape
Aramid-paper insulation and spacing for electrical components and winding systems.
Glass Cloth Tape
High-strength, abrasion-resistant insulation for demanding thermal and mechanical duty.
Flame-Retardant Double-Sided Tape
Bonding insulation parts where flame behavior and assembly efficiency both matter.
CONFIGURABLE PARAMETERS
Define the construction before defining the price
The quotation becomes meaningful only when the critical construction and delivery variables are known.
Primary decisiondielectric function, temperature class, abrasion, flame behavior and component geometry
MaterialsPET/Mylar, polyimide, acetate cloth, Nomex, fiberglass and flame-retardant constructions
AdhesiveAcrylic, modified acrylic, silicone, rubber, conductive or specialty system as applicable
DimensionsThickness, width, length, pitch, shape and tolerances by drawing
PresentationRoll, sheet, spool, kit, kiss-cut roll or individual component
Quality recordApproved construction, drawing, packaging and inspection criteria
APPLICATION-LED SELECTION
Common decision situations
Use these scenarios to identify which details should be tested first.

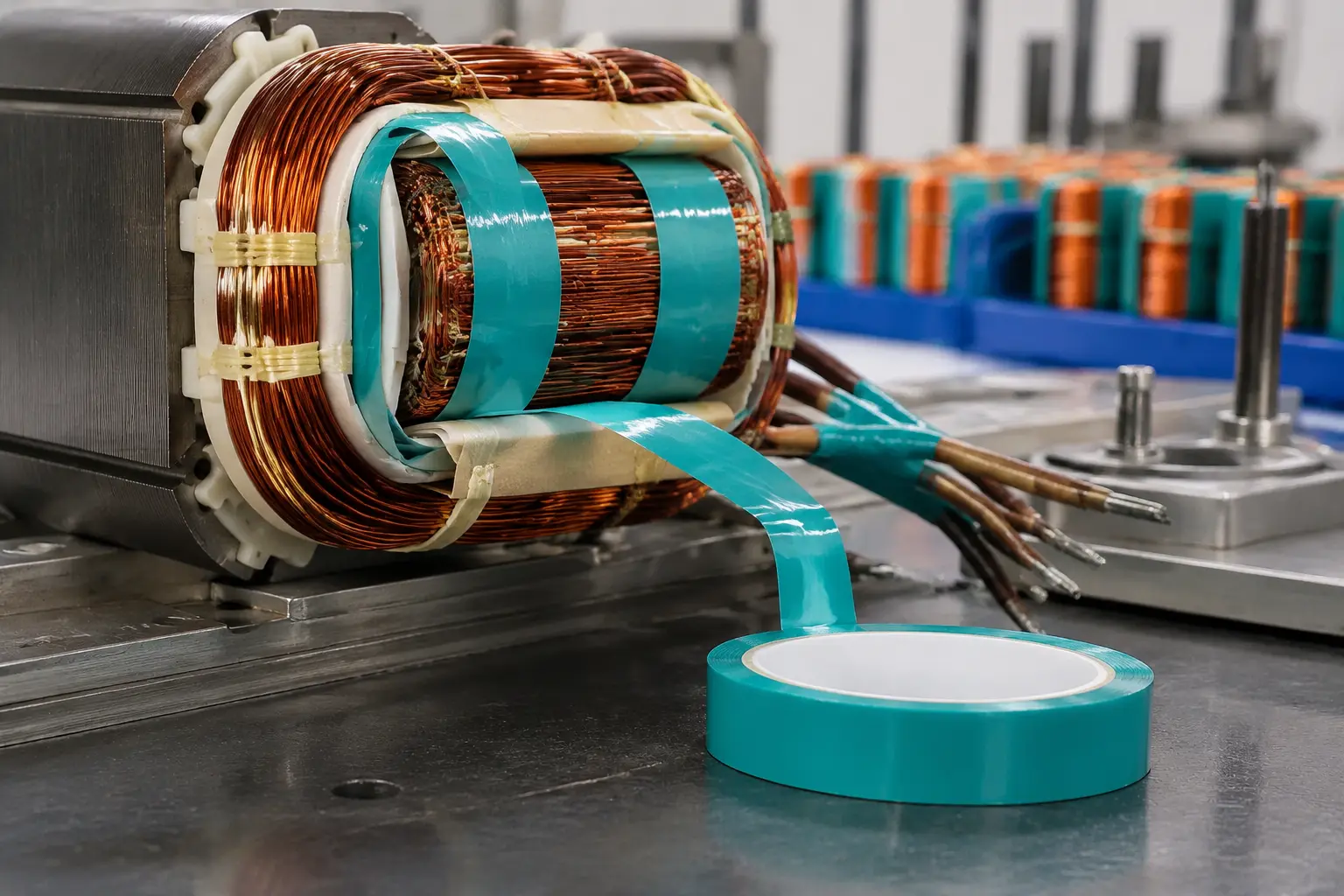

Transformer and coil wrapping
Wrap tension, overlap, insulation class and impregnation process shape the backing choice.
Battery pack insulation
Die-cut geometry, edge coverage, flame behavior and electrolyte exposure may all matter.
Wire harness protection
Conformability and abrasion resistance can outweigh maximum dielectric strength.
Layer insulation
Thickness tolerance and cut-edge quality influence stacking and automated assembly.
Selection boundaries
- A dielectric-strength value alone does not define the insulation system.
- Confirm thermal class, flame and chemical requirements separately.
- Component geometry and edge coverage can be as important as material choice.
RELATED CUSTOM SOLUTIONS
Only the closest engineering neighbors
These links prevent an isolated page without turning the page into a directory of unrelated tapes.
CUSTOM ELECTRICAL INSULATION TAPE FAQ
Frequently asked questions
Electrical performance must be matched to the complete construction, geometry and operating environment.
Which materials can be used for electrical insulation tape?+
Options can include PET film, polyimide, acetate cloth, glass cloth, aramid paper and laminated constructions. Material selection depends on dielectric requirements, thermal class, mechanical stress, conformability, abrasion and the winding or assembly process.
Is dielectric strength determined only by tape thickness?+
No. Backing material, adhesive, defects, overlap, edges, humidity, aging and the finished geometry can all affect insulation performance. Required voltage and test method should be defined before comparing constructions.
Can a custom construction be described as UL recognized?+
Only when the selected material and construction are covered by applicable documentation and the intended use follows its conditions. Certification or recognition should never be inferred from a similar-looking tape, so the exact requirement must be reviewed during specification.
What converted formats are available for insulation applications?+
Depending on the material, formats can include slit rolls, narrow coils, sheets, discs, barriers, wraps, laminated parts and kiss-cut components. Winding tension, overlap, liner, edge quality and placement method should be included in the converting specification.
Have a drawing, sample or performance target?
Send the substrate, dimensions, service conditions and estimated quantity. We will identify the missing variables before proposing a construction.
