Polyimide Tape
PCB masking and electrical insulation with heat-stable PI film and selected silicone or acrylic adhesive.
CUSTOM INDUSTRIAL TAPE SOLUTION
Custom High-Temperature Tape Manufacturing
Build the solution around temperature cycle, residue risk, electrical duty and removal process, rather than specifying only a tape name or nominal thickness.
Quick answer: KAWIN customizes polyimide, high-temperature PET, glass cloth, PTFE and heat-resistant masking. Material selection and converted presentation are aligned to the real component and production process.
CUSTOMIZABLE PRODUCT FORMS
What we can manufacture in this tape family
These options share one topic, but solve different engineering tasks. Select the closest form, then confirm the construction against your application.
High-Temperature PET Tape
Clean-removal powder-coating, plating and process masking where color visibility and film stiffness help.
Glass Cloth Tape
Abrasion-resistant heat insulation and reinforcement for coils, harnesses and industrial processing.
PTFE Tape
Low-friction release, heat sealing and non-stick processing surfaces.
High-Temperature Masking Tape
Crepe, washi and specialty paper constructions for painting and process protection.
Die-Cut Heat Masks
Discs, donuts, plugs, tabs and complex masks supplied on liner, roll or sheet.
CONFIGURABLE PARAMETERS
Define the construction before defining the price
The quotation becomes meaningful only when the critical construction and delivery variables are known.
Primary decisiontemperature cycle, residue risk, electrical duty and removal process
Materialspolyimide, high-temperature PET, glass cloth, PTFE and heat-resistant masking
AdhesiveAcrylic, modified acrylic, silicone, rubber, conductive or specialty system as applicable
DimensionsThickness, width, length, pitch, shape and tolerances by drawing
PresentationRoll, sheet, spool, kit, kiss-cut roll or individual component
Quality recordApproved construction, drawing, packaging and inspection criteria
APPLICATION-LED SELECTION
Common decision situations
Use these scenarios to identify which details should be tested first.

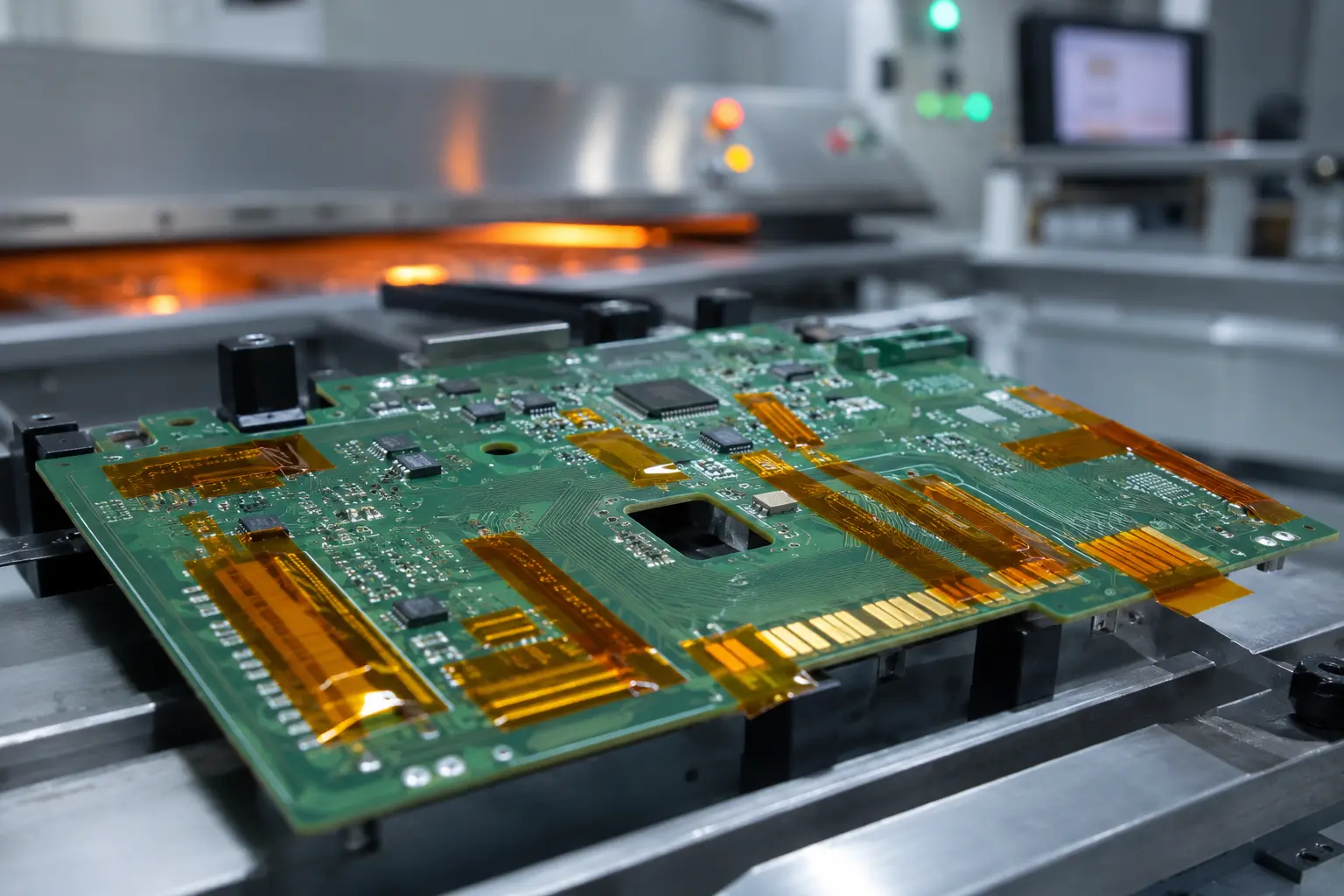

PCB solder masking
Peak temperature, dwell time, flux exposure and residue limit determine PI adhesive and thickness.
Powder coating
Bake cycle, grounding, edge definition and removal temperature influence PET or paper masking choice.
Electrical insulation
Temperature class and dielectric duty may require PI, glass cloth or composite construction.
Release and heat sealing
PTFE surface, backing reinforcement and silicone adhesive are evaluated together.
Selection boundaries
- Maximum temperature without time is not a useful specification.
- Heat resistance and clean removability are different performance questions.
- Test the full heating and cooling cycle, not only the peak temperature.
RELATED CUSTOM SOLUTIONS
Only the closest engineering neighbors
These links prevent an isolated page without turning the page into a directory of unrelated tapes.
CUSTOM HIGH-TEMPERATURE TAPE FAQ
Frequently asked questions
Temperature alone does not define a high-temperature tape. These questions clarify the actual thermal process.
Which backing is suitable for a high-temperature tape?+
Polyimide is commonly selected for thin electrical insulation and PCB masking, high-temperature PET for dimensional stability in suitable process windows, glass cloth for reinforcement and abrasion resistance, and PTFE for release and low-friction applications. The adhesive and total construction must also match the process.
What temperature information is required for selection?+
Provide both the continuous service temperature and the peak temperature, together with exposure duration, number of cycles, heating method, pressure and cooling conditions. A short processing peak and long-term thermal aging are different requirements.
How can residue or edge lift during masking be reduced?+
Selection should consider surface cleanliness, adhesive chemistry, application pressure, dwell time, thermal expansion and removal temperature. Testing should reproduce the real heating cycle and removal direction because a generic temperature rating does not predict clean removal.
Can high-temperature tape be supplied as precision masking parts?+
Yes. It can be slit to narrow widths or converted into discs, frames, tabs, plugs and kiss-cut roll parts. The drawing should identify masked and exposed areas, tolerances, liner configuration, roll direction and handling method.
Have a drawing, sample or performance target?
Send the substrate, dimensions, service conditions and estimated quantity. We will identify the missing variables before proposing a construction.
Discuss this custom tape
