3M 5907 VHB Tape for Thin Display, Bezel and Control Panel Bonding

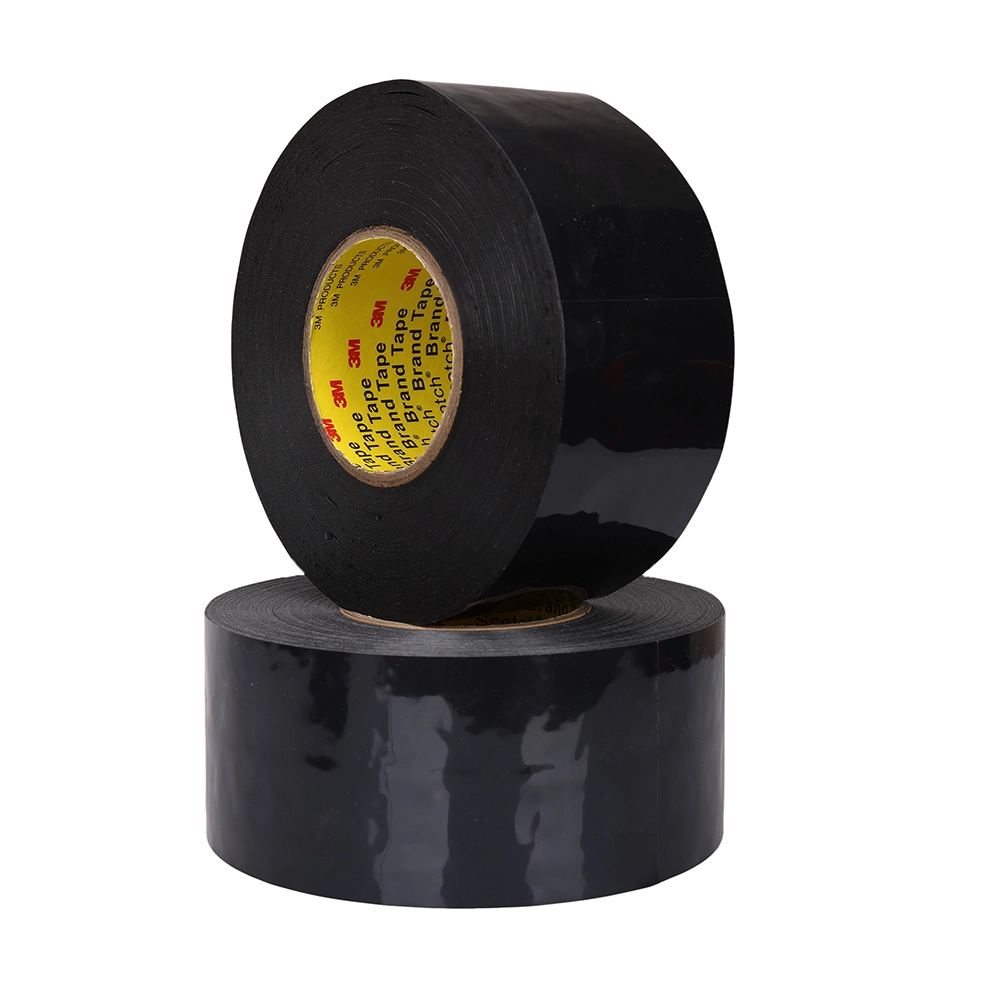

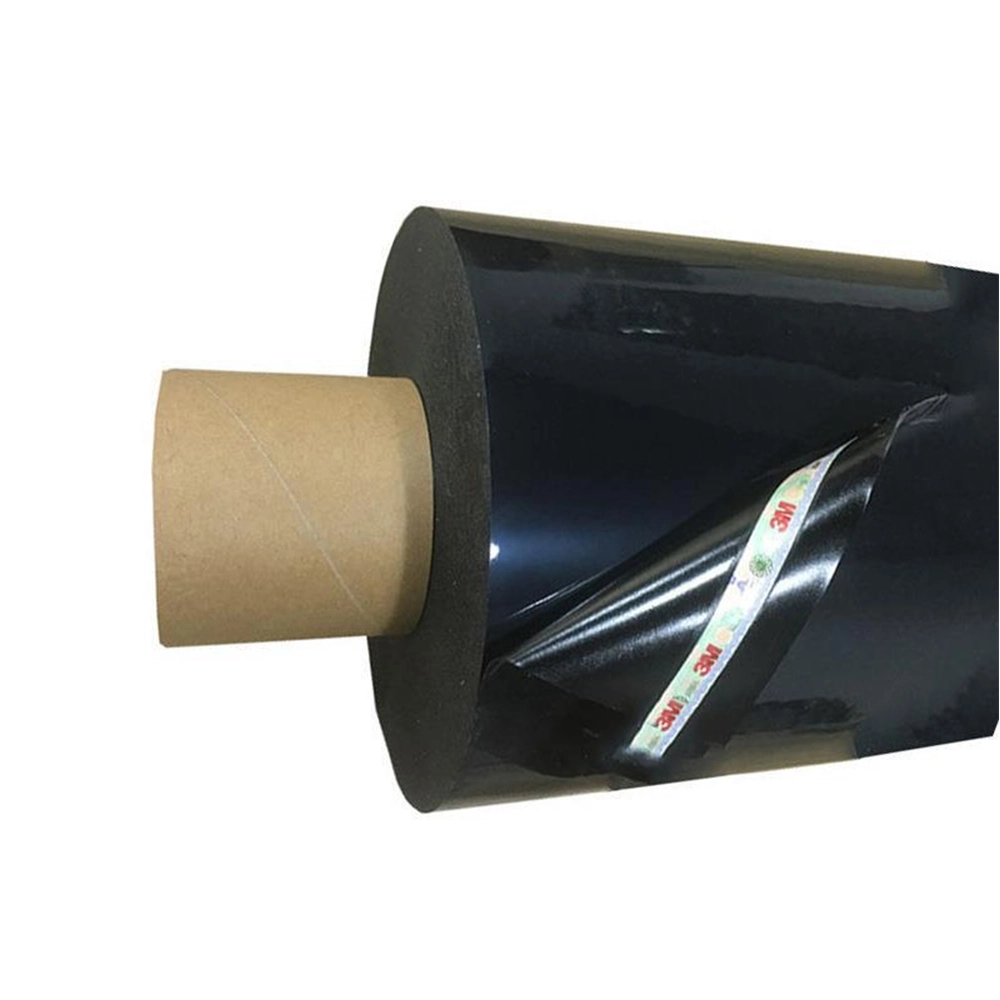

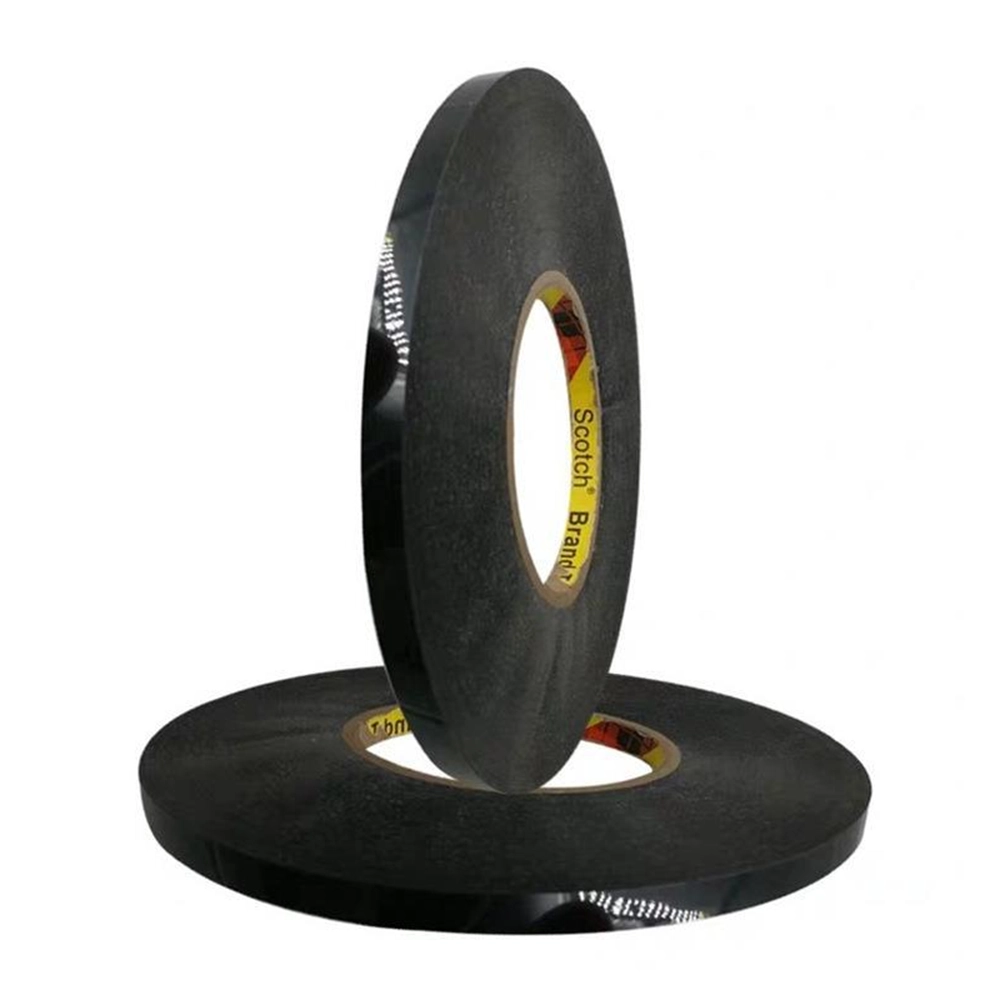

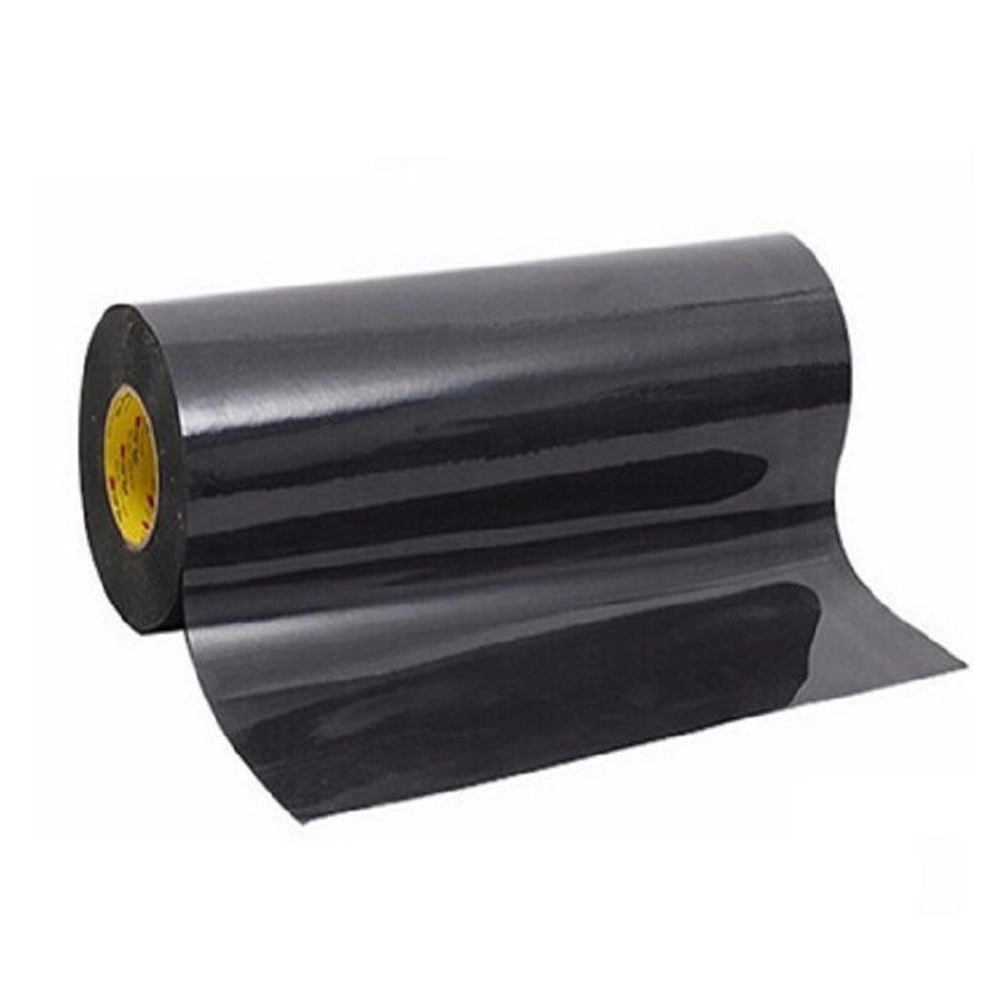

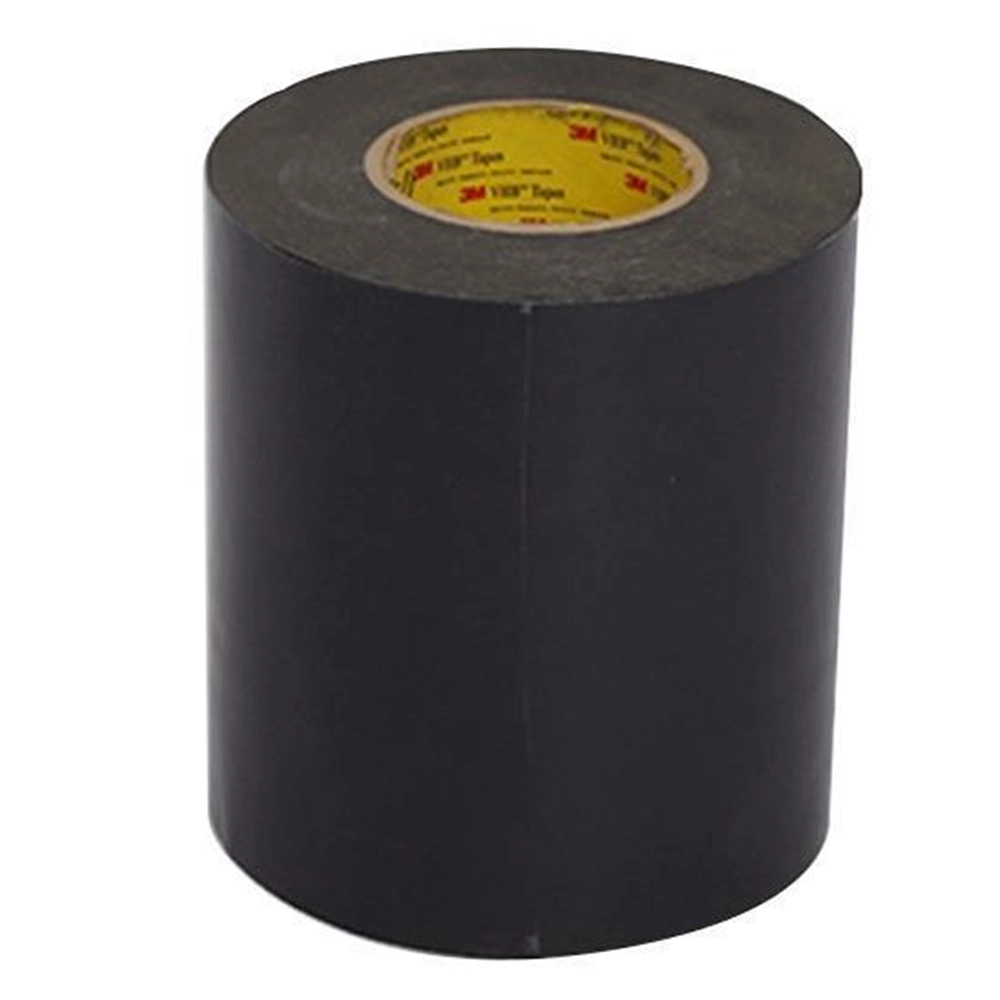

3M™ VHB™ Tape 5907 is a black, 0.20 mm double-coated acrylic foam tape with a clear PET release liner. It belongs to the 3M 5952 VHB Tape family and uses modified acrylic adhesive on both sides of a very conformable acrylic foam core.

Its main selection position is between ultra-thin 5906 and thicker 5908 or 5909. The 0.20 mm construction maintains a low-profile joint while providing slightly more foam thickness for surface contact and minor part mismatch than 5906.

Quick Facts

The values above are documented by 3M as representative or typical information rather than guaranteed design specifications.

Why Choose the 0.20 mm 5907 Profile?

3M 5907 occupies a specific position within the thin 5952-family range.

It is thicker than 5906 but thinner than 5908 and 5909:

This makes 5907 suitable when 0.15 mm provides too little conformity, but a 0.25 or 0.30 mm bond line would create unnecessary component spacing.

The additional 0.05 mm compared with 5906 does not automatically make 5907 stronger. Its practical advantage is the slightly increased foam thickness available to contact minor surface variation while preserving a compact assembly profile.

Typical Applications

3M identifies the following recommended applications for Tape 5907:

• Nameplates and logos
• Electronic displays
• Bezel bonding
• Polycarbonate lenses over LCD assemblies
• Signage components
• Windows bonded to post-painted control panels

Other industrial uses may be considered when the substrate, component geometry, service conditions, and bond-line requirements are compatible with the product.

Electronic Displays and Interface Assemblies

The 0.20 mm profile can be evaluated for mounting display frames, touch-interface bezels, control-panel overlays, and decorative electronic components where the joint must remain thin.

Polycarbonate Lenses and Plastic Windows

The black tape can create a concealed bond line behind polycarbonate lenses, plastic windows, and display covers while replacing liquid adhesive or visible mechanical fasteners.

Nameplates, Logos, and Decorative Components

Continuous tape attachment can distribute force across the mounting area and eliminate drilled holes, screws, or rivets in appearance-critical assemblies.

Painted and Powder-Coated Panels

The modified acrylic adhesive is intended to bond to many paints and powder-coated surfaces. The actual coating formulation must still be tested because chemistry, texture, cure conditions, and contamination can affect adhesion.

Typical Substrates

The 5952-family adhesive system is designed for a broad range of high-, medium-, and medium/low-surface-energy materials, including:

• Aluminum
• Stainless steel
• Galvanized steel
• Glass
• Acrylic
• Polycarbonate
• ABS
• Composite materials
• Many painted surfaces
• Many powder-coated surfaces
• Selected industrial plastics

A general material name does not confirm compatibility. Plastic grade, additives, mold-release residue, coating chemistry, surface texture, and ageing conditions can all change the final bond performance.

Best-Fit Conditions

3M 5907 is a strong candidate when the application requires:

• A nominal 0.20 mm bond line
• Slightly more conformity than 0.15 mm 5906
• Less component spacing than 0.25 mm 5908
• A black adhesive layer hidden behind a dark component
• Permanent bonding without liquid-adhesive curing
• Attachment of displays, bezels, lenses, labels, or decorative parts
• Bonding to validated plastics, paints, metals, or glass
• Precision die-cut frames, rings, strips, or mounting pads
• Immediate handling strength during assembly

When 3M 5907 May Not Be the Best Choice

A different tape should be considered when:

• The assembly requires the lowest possible bond-line thickness
• Components contain measurable gaps
• Rigid parts have poor flatness
• Large manufacturing tolerances must be compensated
• Significant thermal movement must be absorbed
• The substrate is untreated polypropylene, polyethylene, TPO, or another very-low-surface-energy plastic
• Sustained static load is concentrated on a small tape area
• The joint is exposed to continuous chemical immersion
• A rigid structural joint is required
• The application involves automotive electric powertrain or high-voltage battery systems requiring specific automotive quality controls

3M states that VHB tape can conform to some surface mismatch but does not flow to fill gaps. For rigid materials with normal flatness variation, tapes around 1.1 mm or thicker should be considered.

Core Technical Specifications

These values are typical data from the September 2024 English-EU technical data sheet and should not be treated as guaranteed application specifications.

Representative Performance Data

Published performance values apply only to the stated laboratory conditions. Results can change with substrate, coating, tape dimensions, joint geometry, pressure, dwell time, temperature, and environmental exposure.

Product-Specific Engineering Considerations

Thickness Versus Surface Contact

The 0.20 mm foam provides marginally more thickness than 5906, but it remains a thin tape. Parts should already have good dimensional matching before pressure is applied.

Application pressure improves adhesive wet-out; it cannot compensate for a substantial gap between components.

Peel Versus Shear Loading

5907 is generally better suited to joints that distribute force across the tape area. Designs that continuously lift one edge can create peel or cleavage stress and may fail even when the total bonded area appears sufficient.

Static Load and Creep

Acrylic foam is viscoelastic. Its effective strength and stiffness depend on the loading rate, temperature, duration, and joint geometry. A sustained static load should therefore be evaluated differently from a short-duration assembly or handling load.

Chemical Exposure

The official data sheet reports retained peel performance after controlled immersion in several fluids, but continuous chemical submersion is not recommended. These results should be interpreted as resistance to occasional contact under the documented test conditions.

Surface Preparation and Application

For many substrates, 3M recommends cleaning with a 50:50 mixture of isopropyl alcohol and water before applying VHB tape.

Additional preparation may be required for:

• Heavy oil or grease
• Oxidized metal
• Porous materials
• Glass and glass-like surfaces
• Copper-containing metals
• Plasticized plastics or rubber
• Difficult paints and powder coatings
• Low-surface-energy plastics

Firm roller or platen pressure should be applied across the complete bonding area. 3M states that approximately 100 kPa pressure at the tape interface normally provides good surface contact, although rigid components may require greater external pressure to achieve that interface pressure.

The ideal application temperature range is approximately 21°C to 38°C, and initial application below 10°C is not recommended. At room temperature, approximately 50% of ultimate bond strength develops after 20 minutes, 90% after 24 hours, and 100% after 72 hours.

Common Failure Risks for 5907

Treating 0.20 mm as a Gap-Filling Tape

5907 offers slightly more thickness than 5906, but it is still unsuitable for meaningful gaps or highly uneven rigid parts.

Selecting 5907 Without Comparing Adjacent Thicknesses

Choosing by model number alone can lead to unnecessary spacing or insufficient contact. The actual part flatness and required bond line should determine whether 5906, 5907, 5908, or 5909 is more appropriate.

Applying to Unverified Paint or Powder Coat

Different paint formulations can have significantly different surface energies and adhesion performance.

Insufficient Pressure on a Thin Joint

A thin foam tape requires uniform component contact. Local low-pressure regions can remain poorly bonded.

Loading the Assembly Before Wet-Out Develops

Immediate handling strength should not be confused with full bond strength.

Allowing Continuous Edge Lift

Persistent peel stress at a lens, bezel, or nameplate edge can initiate progressive bond failure.

3M 5906 vs 5907 vs 5908 vs 5909

All four products use modified acrylic adhesive and black conformable acrylic foam. Their most important documented difference is thickness, so selection should be based on component spacing, flatness, rigidity, and required tolerance compensation—not an assumption that the thickest option is always strongest.

Official 3M Roll Information

Local stock dimensions and availability may vary by country and distributor.

KAWIN B2B Supply and Converting Support

Depending on material availability and project requirements, KAWIN can support:

• Custom-width slit rolls
• Precision die-cut display frames
• Polycarbonate lens bonding parts
• Nameplate and logo mounting pads
• Rings, strips, and custom gaskets
• Kiss-cut parts on rolls or sheets
• Extended liner tabs
• Prototype samples
• Custom roll lengths
• Packaging and private-label options
• Evaluation of technically comparable acrylic foam tapes

For an application review, provide:

• Exact substrate or coating
• Part drawing
• Required dimensions and tolerance
• Bond-line thickness limit
• Service temperature
• Load direction
• Environmental exposure
• Estimated order volume

Frequently Asked Questions

What is 3M 5907 tape used for?

3M 5907 is used for thin-profile permanent bonding applications such as electronic displays, bezels, polycarbonate lenses, nameplates, logos, signage, and windows attached to painted control panels.

How thick is 3M 5907?

The nominal total tape thickness is 0.20 mm, equivalent to 0.008 inch, excluding the release liner.

What is the difference between 3M 5906 and 5907?

The primary documented difference is thickness. 5906 is 0.15 mm, while 5907 is 0.20 mm. Choose 5906 when the lowest possible profile is required and 5907 when slightly more foam thickness is useful for surface contact.

What is the difference between 3M 5907 and 5908?

5907 is 0.20 mm thick, while 5908 is 0.25 mm. The 5907 option maintains a thinner bond line; 5908 provides slightly more foam thickness for part mismatch and conformity.

Can 3M 5907 fill gaps?

It can conform to slight substrate mismatch, but it does not flow to fill gaps. Rigid parts with meaningful flatness variation generally require a thicker tape.

Can 3M 5907 bond polypropylene?

Adhesion to untreated polypropylene should not be assumed. The exact grade, additives, surface preparation, and service conditions must be tested. Surface treatment, an adhesion promoter, or another tape family may be required.

Can 3M 5907 be die-cut?

Yes. 3M states that VHB tapes are available in converted shapes and sizes through converting channels. Thin-profile frames, rings, strips, and mounting parts should be validated for dimensional tolerance and liner-removal requirements.

Technical Data Sources and Applicability

This page was prepared using:

• The official 3M 5907 product page
• The 3M 5907 English-EU Technical Data Sheet, last revised September 2024
• Official 3M technical documentation for the 5906, 5907, 5908, and 5909 thin-foam family

Published values are representative laboratory data and are not guaranteed specifications for every final assembly. Customers are responsible for validating product suitability for their actual substrate, coating, joint design, production process, service environment, and regulatory requirements.

3M and VHB are trademarks of 3M Company. KAWIN is an independent industrial tape supplier and converter unless a specific commercial relationship is expressly stated.
